NewAge

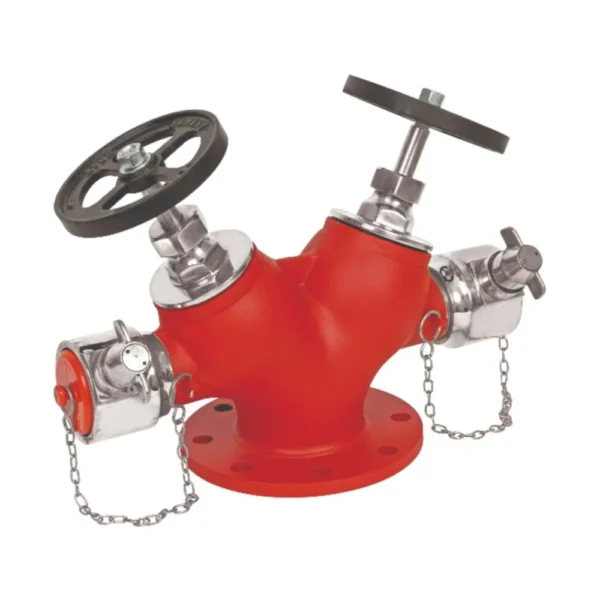

Newage double outlet landing valve: two hose lines from one point
Some hydrant points must feed two hoses at once: a large factory floor, a loading bay, a podium or an open yard. The Newage double outlet landing valve (double-headed fire hydrant valve) does this with a 100 mm flanged inlet and two 63 mm instantaneous outlets, each with its own blank cap.
It belongs to our hydrant valve range inside fire hydrant fittings. More from the maker on the Newage page.
Stainless steel or gun metal
- Stainless steel: SS-304 body, stainless spindle and ABS blank caps on chains. A good pick where damp air or sea salt attacks fittings.
- Gun metal: gunmetal body, brass spindle and PVC blank caps on chains; the classic heavy hydrant valve.
Inlet flange and outlets
The inlet is 100 mm (4 inch) NB. The flange is 220 mm across with a 180 mm pitch circle and eight 19 mm bolt holes. Newage drills it to ANSI or PN16, so tell us which one your pipe flange uses. Both outlets are 63 mm female instantaneous couplings with a twist release lug for quick coupling and release of the hose.
When to choose a double valve
Two hoses need more water, which is why the double valve has a 100 mm inlet against 75 mm on the single model. You will see it on external hydrant rings and at high-risk spots where two crews may work together. Where one hose line is enough, the Newage single outlet landing valve is smaller and lighter. Store both hoses in a double Newage fire hose box and fit triple purpose branch pipes on the hose ends.
Buy double hydrant valves in bulk
Need valves for a full hydrant ring? Order Newage double outlet landing valves in bulk with GST invoice, dispatch within 7 days and Pan-India delivery. Send the material, flange drilling and quantity through our contact page.
